| Nomor Bagian | COM70H7M44UTC |
| Merek | Ortustech |
| Ukuran | 7.0 |
| Aplikasi | Industrial Outdoor H |
| Resolusi | 800×480 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 900:1 |
| Warna | 262K/16.7M |
| Lampu latar | 7S2P |
| Antarmuka | LVDS |
| pabrikan | Ortustech |
| nama model | COM70H7M44UTC |
| ukuran layar | 7.0 inch |
| tipe layar | LCM , a-Si TFT-LCD |
| nomor piksel | 800(RGB)×480 (WVGA) 133PPI |
| pengaturan | RGB Vertical Stripe |

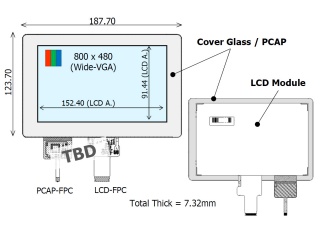

| area aktif (mm) | 152.4 × 91.44 (H×V) |
| garis besar (mm) | 187.7 × 123.7 (H×V×D) |
| area bezel (mm) | - |
| perlakuan | Hard coating (3H) |
| pencahayaan | 900 cd/m² (Typ.) |
| rasio kontras | 900 : 1 (Typ.) (TM) |
| sudut pandang | 80/80/80/80 (Min.)(CR≥10) |
| tanggapan | 50 (Typ.)(Tr+Tf) ms |
| pemandangan bagus di | Symmetry |
| mode kerja | VA, Normally Black, Transflective |
| kedalaman warna | 262K/16.7M 50% NTSC |
| lampu latar | 7S2P WLED , 50K hours , No Driver |
| massa | TBD |
| digunakan untuk | Industrial Outdoor High Brightness |
| tingkat penyegaran | 60Hz |
| layar sentuh | PCAP |
| jenis sinyal | LVDS (1 ch, 6/8-bit) , 30 pins FPC |
| sumber tegangan | 3.3V (Typ.) |
| maks. peringkat | Storage Temp.: -40 ~ 85 °C Operating Temp.: -30 ~ 80 °C ; Vibration Level: 6.8G (66.64 m/s²) |
