| Nomor Bagian | COM70H7M24ULC |
| Merek | Ortustech |
| Ukuran | 7.0 |
| Aplikasi | Industrial Outdoor H |
| Resolusi | 800×480 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 700:13:1 |
| Warna | 262K/16.7M |
| Lampu latar | WLED |
| Antarmuka | LVDS |
| merek | Ortustech |
| model | COM70H7M24ULC |
| ukuran diagonal | 7.0 inch |
| jenis | a-Si TFT-LCD, LCM |
| format piksel | 800(RGB)×480 [WVGA] 133PPI |
| konfigurasi | RGB Vertical Stripe |

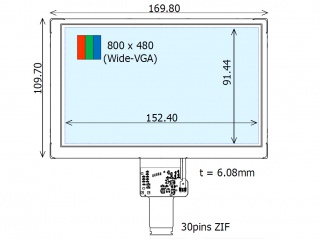

| daerah aktif | 152.4(H)×91.44(V) mm |
| garis besar redup. | 169.8(H)×109.7(V) ×6.11(D) mm |
| daerah bezel | - |
| perlakuan | Hard coating (3H) |
| pencahayaan | 790 cd/m² (Typ.) |
| rasio kontras | 700:1 (Typ.) (TM) 3:1 (Typ.) (RF) |
| arah pandangan | Symmetry |
| waktu merespon | 60/40 (Max.)(Tr/Td) |
| sudut pandang | 80/80/80/80 (Min.)(CR≥10) |
| Modus operasi | VA, Normally Black, Transflective |
| warna pendukung | 262K/16.7M 50% NTSC |
| sumber cahaya | WLED [8S2P] , 100K hours , W/O Driver |
| berat | 170g (Typ.) |
| dirancang untuk | Industrial Outdoor High Brightness Automotive Display |
| kecepatan bingkai | 60Hz |
| panel sentuh | Without |
| tipe antarmuka | LVDS (1 ch, 6/8-bit) , 30 pins FPC |
| Sumber Daya listrik | 3.3V (Typ.) |
| lingkungan | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 6.8G (66.64 m/s²) |
