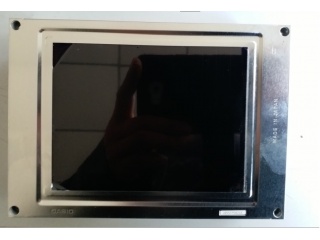

| Nomor Bagian | COM55T5103RSP |
| Merek | CASIO |
| Ukuran | 5.5 |
| Aplikasi | Industrial |
| Resolusi | 320×234 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 60:1 |
| Warna | Full |
| Lampu latar | 1 |
| Antarmuka | Analog |
| merek panel | CASIO |
| ukuran panel | 5.5" |
| resolusi | 320(RGB)×234, 72PPI |
| area tampilan | 110.4(W)×83.538(H) mm |
| ukuran garis besar | 163(W)×115(H) ×32.5(D) mm |
| kecerahan | 350 cd/m² (Typ.) |
| sudut pandang | 35/35/30/35 (Typ.)(CR≥10) |
| tampilan terbaik di | 12 o'clock |
| menampilkan warna | Full color |
| frekuensi | 60Hz |
| berat panel | 400g (Typ.) |
| antarmuka sinyal | Analog RGB , 12 pins Connector |
| tegangan masukan | 12.0V (Typ.) |
| lingkungan | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -10 ~ 60 °C |
| model panel | COM55T5103RSP |
| tipe panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| bukaan bezel | - |
| permukaan | - |
| rasio kontras | 60:1 (Min.) (TM) |
| mode tampilan | TN, Normally White, Transmissive |
| waktu merespon | - |
| jenis lampu | 1 pcs CCFL , With Inverter |
| layar sentuh | Without |
| aplikasi | Industrial |
| BT055FWM-N00 | BOE | 5.5 | 480×854 |
| CM546B1-002 | CSOT | 5.5 | 1080×1920 |
| LH550WF2-SD01 | LG Display | 5.5 | 1080×1920 |
| LM32C041 | SHARP | 5.5 | 320×240 |
| LM6Q35 | SHARP | 5.5 | 320×240 |
| LQ055T3SX04 | SHARP | 5.5 | 1080×1920 |
| LS055R1SC01 | SHARP | 5.5 | 1440×2560 |
| NL3224AC35-01 | NLT | 5.5 | 320×240 |
| NL3224BC35-20R | NLT | 5.5 | 320×240 |
| TM055XDHP10 | Tianma | 5.5 | 540×960 |
