| Nomor Bagian | COM48H4N77ULC |
| Merek | Ortustech |
| Ukuran | 4.8 |
| Aplikasi | Handheld & PDA |
| Resolusi | 720×1280 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 700:13:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | MIPI |
| merek | Ortustech |
| ukuran diagonal | 4.8 inch |
| format piksel | 720(RGB)×1280 [WXGA] 309PPI |
| daerah aktif | 59.184(H)×105.216(V) mm |
| daerah bezel | - |
| pencahayaan | 300 cd/m² (Typ.) |
| arah pandangan | Symmetry |
| sudut pandang | 80/80/80/80 (Min.)(CR≥10) |
| warna pendukung | 16.7M 50% NTSC |
| berat | 25.2g (Typ.) |
| kecepatan bingkai | - |
| tipe antarmuka | MIPI (4 data lanes) , 26 pins Connector |
| Sumber Daya listrik | 1.9/2.9V (Typ.)(IOVCC/VCC) |
| lingkungan | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²) |
| model | COM48H4N77ULC |
| jenis | a-Si TFT-LCD , LCM |
| konfigurasi | RGB Vertical Stripe |

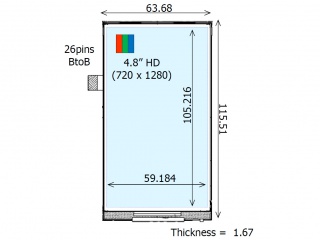

| garis besar redup. | 63.68(H)×115.51(V) ×1.87(D) mm |
| perlakuan | Hard coating (2H) |
| rasio kontras | 700:1 (Typ.) (TM) 3:1 (Typ.) (RF) |
| waktu merespon | 40/60 (Max.)(Tr/Td) |
| Modus operasi | VA, Normally Black, Transflective |
| sumber cahaya | WLED [9S1P] , 20K hours , W/O Driver |
| dirancang untuk | Handheld & PDA |
| panel sentuh | Without |
