| Nomor Bagian | COM24H2P71ULC |
| Merek | Ortustech |
| Ukuran | 2.4 |
| Aplikasi | Handheld & PDA |
| Resolusi | 240×320 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 800:12:1 |
| Warna | 262K |
| Lampu latar | 2S1P |
| Antarmuka | Parallel |
| merek panel | Ortustech |
| model panel | COM24H2P71ULC |
| ukuran panel | 2.4" |
| tipe panel | a-Si TFT-LCD, LCM |
| resolusi | 240(RGB)×320, QVGA, 169PPI |
| format piksel | RGB Vertical Stripe |

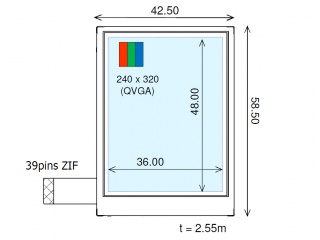

| area tampilan | 36(W)×48(H) mm |
| bukaan bezel | - |
| ukuran garis besar | 42.5(W)×58.5(H) ×5.55(D) mm |
| permukaan | Hard coating (3H) |
| kecerahan | 270 cd/m² (Typ.) |
| rasio kontras | 800:1 (Typ.) (TM) 2:1 (Typ.) (RF) |
| sudut pandang | 80/80/80/80 (Min.)(CR≥10) |
| mode tampilan | VA, Normally Black, Transflective |
| tampilan terbaik di | Symmetry |
| waktu merespon | 50 (Typ.)(Tr+Td) |
| menampilkan warna | 262K 50% NTSC |
| jenis lampu | 2S1P WLED , 50K hours , Without Driver |
| frekuensi | 60Hz |
| layar sentuh | Without |
| berat panel | 13.5g (Typ.) |
| aplikasi | Handheld & PDA |
| antarmuka sinyal | Parallel RGB (1 ch, 6-bit) , 39 pins FPC |
| tegangan masukan | 3.3/3.3V (Typ.)(VCCIO/VDD) |
| lingkungan | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C |
