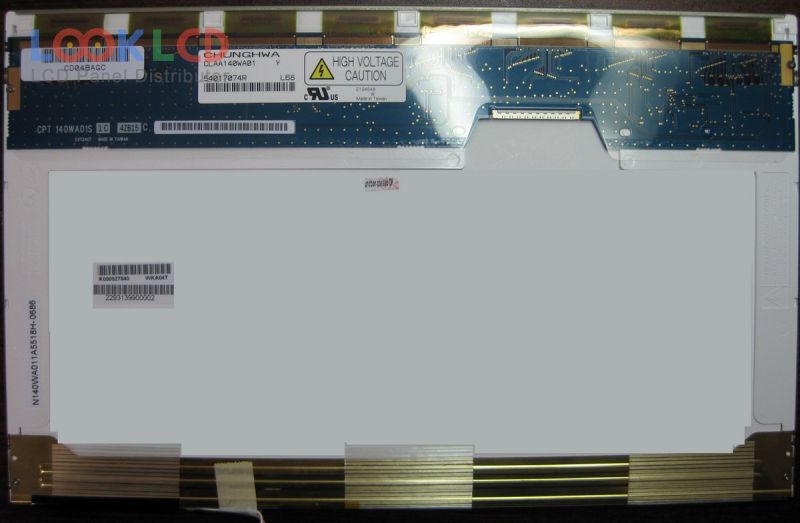

| Nomor Bagian | CLAA140WA01 |
| Merek | CPT |
| Ukuran | 14.0 |
| Aplikasi | NBPC |
| Resolusi | 1280×768 |
| Komposisi | LCM |
| Kecerahan | 185 |
| CR | 350:1 |
| Warna | 262K |
| Lampu latar | CCFL |
| Antarmuka | LVDS |
| merek panel | CPT |
| model panel | CLAA140WA01 1 Compatible model |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 14.0 inch |
| resolusi | 1280(RGB)×768 , WXGA |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 305.28×183.168 mm |
| garis besar | 320×199×5.7 mm |
| gaya bentuk | Wedge (PCBA Bent, Depth ≥5.2mm) |
| permukaan | Antiglare, Hard coating (3H) |
| kecerahan | 185 cd/m² (Typ.) |
| rasio kontras | 350:1 (Typ.) |
| menampilkan warna | 262K (6-bit) |
| waktu merespon | 9/16 (Typ.)(Tr/Td) |
| sudut pandang | 40/40/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | 1 pcsCCFLWithout Driver |
| antarmuka sinyal | LVDS (1 ch, 6-bit), 30 pins |
| tegangan masukan | 3.3V (Typ.) |
| aplikasi | NBPC |
