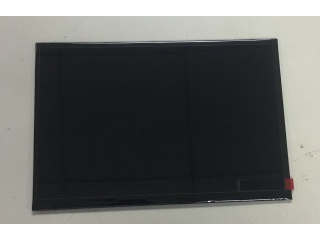

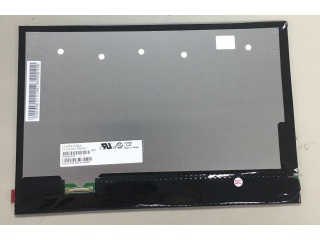

| Nomor Bagian | CLAA101FP0E XG |
| Merek | CPT |
| Ukuran | 10.1 |
| Aplikasi | Pad & Tablet Ind |
| Resolusi | 1920×1200 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 750:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | eDP |
| merek panel | CPT |
| model panel | CLAA101FP0E XG |
| ukuran panel | 10.1" |
| tipe panel | a-Si TFT-LCD, LCM |
| resolusi | 1920(RGB)×1200, WUXGA, 225PPI |
| format piksel | RGB Vertical Stripe |
| area tampilan | 216.576(W)×135.36(H) mm |
| bukaan bezel | - |
| ukuran garis besar | 229(W)×153(H) ×4.8(D) mm |
| permukaan | Antiglare |
| kecerahan | 700 cd/m² (Typ.) |
| rasio kontras | 750:1 (Typ.) (TM) |
| sudut pandang | 89/89/89/89 (Typ.)(CR≥10) |
| mode tampilan | HFFS, Normally Black, Transmissive |
| tampilan terbaik di | Symmetry |
| waktu merespon | 30 (Typ.)(Tr+Td) |
| menampilkan warna | 16.7M 50% NTSC |
| jenis lampu | WLED , 15K hours , With LED Driver |
| frekuensi | 60Hz |
| layar sentuh | Without |
| berat panel | 150g (Typ.) |
| aplikasi | Pad & Tablet Industrial Outdoor High Brightness |
| antarmuka sinyal | eDP (2 Lanes) , eDP1.2 , 30 pins Connector |
| tegangan masukan | 3.3V (Typ.) |
| lingkungan | Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -10 ~ 70 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| CLAA101FP01 XG | CPT | 10.1 | 1920×1200 |
| CLAA101FP05 | CPT | 10.1 | 1920×1200 |
| CLAA101NC05 | CPT | 10.1 | 1024×600 |
| CLAA101ND06CW | CPT | 10.1 | 1024×600 |
| CLAA101WA01 | CPT | 10.1 | 1366×768 |
| CLAA101WA01A | CPT | 10.1 | 1366×768 |
| CLAA101WB03 | CPT | 10.1 | 1366×768 |
| CLAA101WH13LE | CPT | 10.1 | 1280×800 |
| CLAA101WJ03 XG | CPT | 10.1 | 1366×768 |
| CLAA101WJ06 | CPT | 10.1 | 1366×768 |
