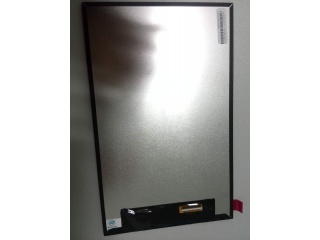

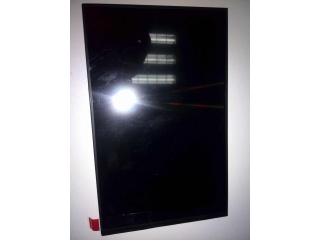

| Nomor Bagian | CLAA080WQ05 XN |
| Merek | CPT |
| Ukuran | 8.0 |
| Aplikasi | Pad & Tablet Industr |
| Resolusi | 800×1280 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | 3S7P |
| Antarmuka | |
| pabrikan | CPT |
| ukuran layar | 8.0 inch |
| nomor piksel | 800(RGB)×1280 (WXGA) 188PPI |
| area aktif (mm) | 107.64 × 172.224 (H×V) |
| area bezel (mm) | - |
| pencahayaan | 350 (Typ.)(cd/m²) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10) |
| pemandangan bagus di | Symmetry |
| kedalaman warna | 16.7M 58% NTSC |
| massa | 115g (Max.) |
| tingkat penyegaran | 60Hz |
| nama model | CLAA080WQ05 XN |
| tipe layar | LCM , a-Si TFT-LCD |
| pengaturan | RGB Vertical Stripe |
| garis besar (mm) | 114.6 × 184.7 × 4.56 (H×V×D) |
| perlakuan | Hard coating (3H) |
| rasio kontras | 800 : 1 (Typ.) (TM) |
| mode kerja | HFFS, Normally Black, Transmissive |
| tanggapan | 30 (Typ.)(Tr+Td) ms |
| lampu latar | 3S7P WLED , 15K hours , No Driver |
| digunakan untuk | Pad & Tablet Industrial |
| layar sentuh | Without |
| CLAA080JA11CW | CPT | 8.0 | 480×220 |
| CLAA080LA0ACW | CPT | 8.0 | 800×480 |
| CLAA080LA0BCW | CPT | 8.0 | 800×480 |
| CLAA080LB0AXV | CPT | 8.0 | 800×480 |
| CLAA080LG01CW | CPT | 8.0 | 800×480 |
| CLAA080MB0DCW | CPT | 8.0 | 800×600 |
| CLAA080NA01 CW | CPT | 8.0 | 1024×600 |
| CLAA080UA01 | CPT | 8.0 | 1600×768 |
| CLAA080WQ02 XG | CPT | 8.0 | 800×1280 |
| CLAA080WQ08 XN | CPT | 8.0 | 800×1280 |
