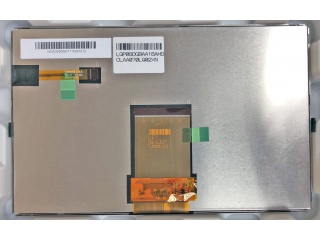

| Nomor Bagian | CLAA070LQ02 XN |
| Merek | CPT |
| Ukuran | 7.0 |
| Aplikasi | Automotive Display |
| Resolusi | 800×480 |
| Komposisi | LCM, a-Si TFT-LCD |
| Kecerahan | |
| CR | 900:1 |
| Warna | 262K/16.7M |
| Lampu latar | 7S2P |
| Antarmuka | LVDS |
| pabrikan | CPT |
| nama model | CLAA070LQ02 XN |
| ukuran layar | 7.0 inch |
| tipe layar | LCM, a-Si TFT-LCD |
| nomor piksel | 800(RGB)×480 (WVGA) 133PPI |
| pengaturan | RGB Vertical Stripe |
| area aktif (mm) | 152.4 × 91.44 (H×V) |
| garis besar (mm) | 165 × 104 × 7.3 (H×V×D) |
| area bezel (mm) | 154.4 × 93.44 (H×V) |
| perlakuan | Antiglare (Haze 25%) |
| pencahayaan | 760 cd/m² (Typ.) |
| rasio kontras | 900 : 1 (Typ.) (TM) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10) |
| tanggapan | 25 (Typ.)(Tr+Tf) ms |
| pemandangan bagus di | Symmetry |
| mode kerja | HFFS, Normally Black, Transmissive |
| kedalaman warna | 262K/16.7M 70% NTSC |
| lampu latar | 7S2P WLED , 30K hours , No Driver |
| massa | 175g (Typ.) |
| digunakan untuk | Automotive Display |
| tingkat penyegaran | 60Hz |
| layar sentuh | Without |
| jenis sinyal | LVDS (1 ch, 6/8-bit) , FPC 60 pins |
| sumber tegangan | 3.3/13.0/20.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| maks. peringkat | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
