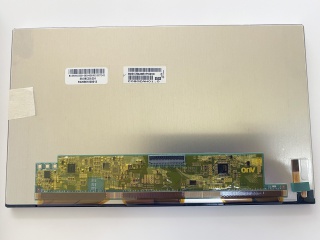

| Nomor Bagian | C090EAN01.0 |
| Merek | AUO |
| Ukuran | 9.0 |
| Aplikasi | Automotive Display |
| Resolusi | 1280×720 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | LVDS |
| merek | AUO |
| model | C090EAN01.0 |
| ukuran diagonal | 9.0 inch |
| jenis | a-Si TFT-LCD, LCM |
| format piksel | 1280(RGB)×720 [WXGA] 163PPI |
| konfigurasi | RGB Vertical Stripe |
| daerah aktif | 198.72(H)×111.78(V) mm |
| garis besar redup. | - |
| pencahayaan | - |
| rasio kontras | 1000:1 (Typ.) (TM) |
| arah pandangan | Symmetry |
| waktu merespon | 15/15 (Max.)(Tr/Td) |
| sudut pandang | 80/80/80/80 (Typ.)(CR≥10) |
| Modus operasi | AHVA, Normally Black, Transmissive |
| warna pendukung | 16.7M 70% NTSC |
| sumber cahaya | WLED |
| berat | - |
| dirancang untuk | Automotive Display |
| kecepatan bingkai | 60Hz |
| panel sentuh | Without |
| tipe antarmuka | LVDS (1 ch, 8-bit) |
| lingkungan | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| A090PAN01.0 | AUO | 9.0 | 900×1440 |
| A090VW01 V3 | AUO | 9.0 | 800×480 |
| AA090MC01 | Mitsubishi | 9.0 | 800×480 |
| C090EAN01.1 | AUO | 9.0 | 1280×720 |
| CLAA090LC41CW | CPT | 9.0 | 800×480 |
| ED090NA-01H | Innolux | 9.0 | 1280×800 |
| HLD0909-020010 | Hosiden | 9.0 | 640×480 |
| HSD090IDW1-A00 | HannStar | 9.0 | 800×480 |
| LTA090A220F | TOSHIBA | 9.0 | 800×480 |
| YXD090TN02-40NM01 | SEBO | 9.0 | 1280×800 |
