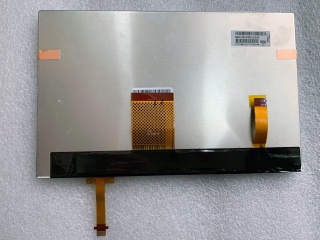

| Nomor Bagian | C080VTN04.0 |
| Merek | AUO |
| Ukuran | 8.0 |
| Aplikasi | Automotive Display |
| Resolusi | 800×480 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | |
| Warna | 262K |
| Lampu latar | WLED |
| Antarmuka | Parallel |
| merek | AUO |
| model | C080VTN04.0 |
| ukuran diagonal | 8.0 inch |
| jenis | a-Si TFT-LCD, LCM |
| format piksel | 800(RGB)×480 [WVGA] 115PPI |
| konfigurasi | RGB Vertical Stripe |
| daerah aktif | 175.2(H)×105.12(V) mm |
| garis besar redup. | - |
| daerah bezel | - |
| perlakuan | Antiglare |
| arah pandangan | - |
| waktu merespon | 15/20 (Typ.)(Tr/Td) |
| sudut pandang | 60/60/40/60 (Typ.)(CR≥10) |
| Modus operasi | TN, Normally White, Transmissive |
| warna pendukung | 262K |
| sumber cahaya | WLED |
| berat | - |
| dirancang untuk | Automotive Display |
| kecepatan bingkai | 60Hz |
| panel sentuh | - |
| tipe antarmuka | Parallel RGB (1 ch, 6-bit) , 60 pins Connector |
| lingkungan | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -40 ~ 95 °C |
