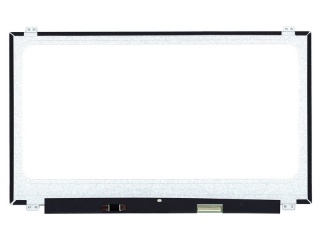

| Nomor Bagian | B173QTN01.0 |
| Merek | AUO |
| Ukuran | 17.3 |
| Aplikasi | Laptop |
| Resolusi | 2560×1440 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 700:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | eDP |
| merek | AUO |
| model | B173QTN01.0 (AUO1096) |
| ukuran diagonal | 17.3 inch |
| jenis | a-Si TFT-LCD, LCM |
| format piksel | 2560(RGB)×1440 [Quad-HD] 170PPI |
| konfigurasi | RGB Vertical Stripe |
| daerah aktif | 382.08(H)×214.92(V) mm |
| garis besar redup. | 398.1(H)×252.5(V) ×4.3(D) mm |
| daerah bezel | - |
| perlakuan | Antiglare, Hard coating (3H) |
| pencahayaan | 400 cd/m² (Typ.) |
| rasio kontras | 700:1 (Typ.) (TM) |
| arah pandangan | - |
| waktu merespon | 5 (Typ.)(Tr+Tf) |
| sudut pandang | 70/70/60/60 (Typ.)(CR≥10) |
| Modus operasi | TN, Normally White, Transmissive |
| warna pendukung | 16.7M 72% NTSC |
| sumber cahaya | WLED , 15K hours , With LED Driver |
| gaya bentuk | Flat (PCBA Flat, T3.4~4.0mm) |
| dirancang untuk | Laptop |
| kecepatan bingkai | 120Hz |
| panel sentuh | Without |
| tipe antarmuka | eDP (4 Lanes) , eDP1.4 , 40 pins Connector |
| Sumber Daya listrik | 3.3V (Typ.) |
| lingkungan | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
