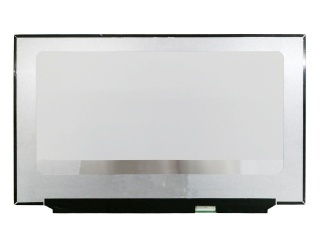

| Nomor Bagian | B173HAN04.4 |
| Merek | AUO |
| Ukuran | 17.3 |
| Aplikasi | Laptop Gaming |
| Resolusi | 1920×1080 |
| Komposisi | LCM, a-Si TFT-LCD |
| Kecerahan | |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | eDP |
| pabrikan | AUO |
| nama model | B173HAN04.4 (AUO449D) |
| ukuran layar | 17.3 inch |
| tipe layar | LCM, a-Si TFT-LCD |
| nomor piksel | 1920(RGB)×1080 (FHD) 127PPI |
| pengaturan | RGB Vertical Stripe |
| area aktif (mm) | 381.888 × 214.812 (H×V) |
| garis besar (mm) | 389.89 × 238.31 × 3.5 (H×V×D) |
| area bezel (mm) | - |
| perlakuan | Antiglare, Hard coating (3H) |
| pencahayaan | 300 cd/m² (Typ.) |
| rasio kontras | 800 : 1 (Typ.) (TM) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10) |
| tanggapan | 9 (Typ.)(Tr+Td); 7 (Typ.)(G to G) ms |
| pemandangan bagus di | Symmetry |
| mode kerja | AHVA, Normally Black, Transmissive |
| kedalaman warna | 16.7M 72% NTSC |
| lampu latar | WLED , 15K hours , With LED Driver |
| bentuk garis besar | Flat (PCBA Flat, T3.4~4.0mm) |
| digunakan untuk | Laptop Gaming |
| tingkat penyegaran | 144Hz |
| layar sentuh | Without |
| jenis sinyal | eDP (4 Lanes) , eDP1.3 , HBR2 (5.4G/lane) , Connector 40 pins |
| sumber tegangan | 3.3V (Typ.) |
| maks. peringkat | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| B173HAN01.0 | AUO | 17.3 | 1920×1080 |
| B173HTN01.1 | AUO | 17.3 | 1920×1080 |
| B173HW01 V4 | AUO | 17.3 | 1920×1080 |
| B173HW01 V5 | AUO | 17.3 | 1920×1080 |
| B173HW02 V1 | AUO | 17.3 | 1920×1080 |
| LP173WD1-TLN1 | LG Display | 17.3 | 1600×900 |
| LTN173KT01-H01 | Samsung | 17.3 | 1600×900 |
| LTN173KT01-J01 | Samsung | 17.3 | 1600×900 |
| LTN173KT01-W01 | Samsung | 17.3 | 1600×900 |
| N173HGE-L11 | Innolux | 17.3 | 1920×1080 |
