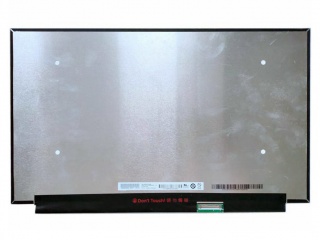

| Nomor Bagian | B156ZAN04.0 |
| Merek | AUO |
| Ukuran | 15.6 |
| Aplikasi | Laptop |
| Resolusi | 3840×2160 |
| Komposisi | LCM, LTPS TFT-LCD |
| Kecerahan | |
| CR | 1200:1 |
| Warna | 1.06B |
| Lampu latar | WLED |
| Antarmuka | eDP |
| pabrikan | AUO |

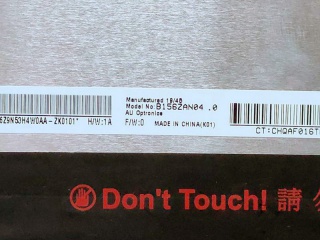

| nama model | B156ZAN04.0 |
| ukuran layar | 15.6 inch |
| tipe layar | LCM, LTPS TFT-LCD |
| nomor piksel | 3840(RGB)×2160 (UHD) 283PPI |
| pengaturan | RGB Vertical Stripe |
| area aktif (mm) | 344.218 × 193.622 (H×V) |
| garis besar (mm) | - |
| pencahayaan | - |
| rasio kontras | 1200 : 1 (Typ.) (TM) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10) |
| tanggapan | 30 (Typ.)(Tr+Td) ms |
| pemandangan bagus di | Symmetry |
| mode kerja | AHVA, Normally Black, Transmissive |
| kedalaman warna | 1.06B |
| lampu latar | WLED , 15K hours , With LED Driver |
| bentuk garis besar | Slim (PCBA Flat, T≤3.2mm) |
| digunakan untuk | Laptop |
| tingkat penyegaran | 60Hz |
| layar sentuh | Without |
| jenis sinyal | eDP (4 Lanes) , eDP1.4a , Connector 40 pins |
| sumber tegangan | 3.3V (Typ.) |
| maks. peringkat | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
