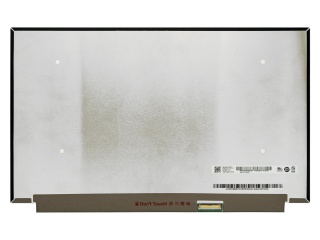

| Nomor Bagian | B156ZAN03.2 |
| Merek | AUO |
| Ukuran | 15.6 |
| Aplikasi | Laptop |
| Resolusi | 3840×2160 |
| Komposisi | LTPS TFT-LCD, LCM |
| Kecerahan | |
| CR | 1200:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | eDP |
| merek | AUO |
| model | B156ZAN03.2 (AUO32EB) |
| ukuran diagonal | 15.6 inch |
| jenis | LTPS TFT-LCD, LCM |
| format piksel | 3840(RGB)×2160 [UHD] 283PPI |
| konfigurasi | RGB Vertical Stripe |
| daerah aktif | 344.218(H)×193.622(V) mm |
| garis besar redup. | 350.66(H)×216.45(V) ×2.6(D) mm |
| daerah bezel | - |
| perlakuan | Antiglare |
| pencahayaan | 400 cd/m² (Typ.) |
| rasio kontras | 1200:1 (Typ.) (TM) |
| arah pandangan | Symmetry |
| waktu merespon | 30 (Typ.)(Tr+Td) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10) |
| Modus operasi | AHVA, Normally Black, Transmissive |
| warna pendukung | 16.7M 100% Adobe RGB |
| sumber cahaya | WLED , 15K hours , With LED Driver |
| gaya bentuk | Slim (PCBA Flat, T≤3.2mm) |
| dirancang untuk | Laptop |
| kecepatan bingkai | 60Hz |
| panel sentuh | Without |

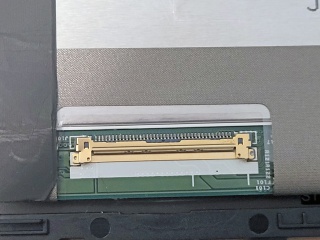

| tipe antarmuka | eDP (4 Lanes) , eDP1.3 , 40 pins Connector |
| Sumber Daya listrik | 3.3V (Typ.) |
| lingkungan | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
