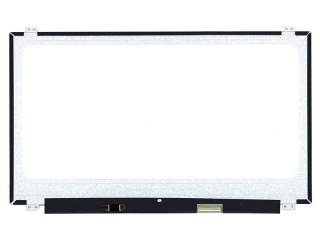

| Nomor Bagian | B156XTN07.0 HWAA |
| Merek | AUO |
| Ukuran | 15.6 |
| Aplikasi | Laptop |
| Resolusi | 1366×768 |
| Komposisi | LCM, a-Si TFT-LCD |
| Kecerahan | |
| CR | 500:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antarmuka | |
| pabrikan | AUO |
| nama model | B156XTN07.0 HWAA (AUO70EC) |
| ukuran layar | 15.6 inch |
| tipe layar | LCM, a-Si TFT-LCD |
| nomor piksel | 1366(RGB)×768 (WXGA) 100PPI |
| pengaturan | RGB Vertical Stripe |
| area aktif (mm) | 344.232 × 193.536 (H×V) |
| garis besar (mm) | 359.5 × 223.8 × 3.4 (H×V×D) |
| area bezel (mm) | - |
| perlakuan | Hard coating |
| pencahayaan | 200 cd/m² (Typ.) |
| rasio kontras | 500 : 1 (Typ.) (TM) |
| sudut pandang | 45/45/15/35 (Typ.)(CR≥10) |
| tanggapan | 8 (Typ.)(Tr+Td) ms |
| pemandangan bagus di | 6 o'clock |
| mode kerja | TN, Normally White, Transmissive |
| kedalaman warna | 262K 45% NTSC |
| lampu latar | WLED , 15K hours , With LED Driver |
| bentuk garis besar | Slim (PCBA Flat, T≤3.2mm) |
| digunakan untuk | Laptop |
| tingkat penyegaran | 60Hz |
| layar sentuh | Without |
| Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| B156XTN02.0 | AUO | 15.6 | 1366×768 |
| B156XTN02.2 | AUO | 15.6 | 1366×768 |
| B156XTN02.4 | AUO | 15.6 | 1366×768 |
| B156XTN03.1 | AUO | 15.6 | 1366×768 |
| B156XTN03.2 | AUO | 15.6 | 1366×768 |
| B156XTN03.5 | AUO | 15.6 | 1366×768 |
| B156XTN04.1 | AUO | 15.6 | 1366×768 |
| B156XTN04.5 | AUO | 15.6 | 1366×768 |
| B156XTN05.0 | AUO | 15.6 | 1366×768 |
| N156BGE-E21 | Innolux | 15.6 | 1366×768 |
