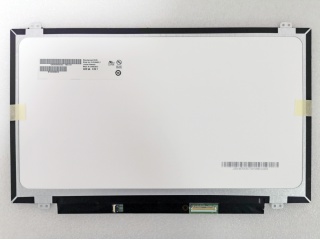

| Nomor Bagian | B140HAN02.2 |
| Merek | AUO |
| Ukuran | 14.0 |
| Aplikasi | Laptop |
| Resolusi | 1920×1080 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 800:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antarmuka | eDP |
| pabrikan | AUO |
| ukuran layar | 14.0 inch |
| nomor piksel | 1920(RGB)×1080 (FHD) 157PPI |
| area aktif (mm) | 309.14 × 173.89 (H×V) |
| area bezel (mm) | - |
| pencahayaan | 220 cd/m² (Typ.) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10) |
| pemandangan bagus di | Symmetry |
| kedalaman warna | 262K 45% NTSC |
| bentuk garis besar | Slim (PCBA Flat, T≤3.2mm) |
| tingkat penyegaran | 60Hz |
| jenis sinyal | eDP (2 Lanes) , eDP1.2 , 40 pins Connector |
| sumber tegangan | 3.3V (Typ.) |
| maks. peringkat | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| nama model | B140HAN02.2 (AUO223D) |
| tipe layar | LCM , a-Si TFT-LCD |
| pengaturan | RGB Vertical Stripe |
| garis besar (mm) | 320.4 × 205.1 × 3.2 (H×V×D) |
| perlakuan | Glare (Haze 0%) |
| rasio kontras | 800 : 1 (Typ.) (TM) |
| tanggapan | 30 (Typ.)(Tr+Td) ms |
| mode kerja | AHVA, Normally Black, Transmissive |
| lampu latar | WLED , 15K hours , With LED Driver |
| digunakan untuk | Laptop |
| layar sentuh | Without |
| B140HAN01.0 | AUO | 14.0 | 1920×1080 |
| B140HAN01.1 | AUO | 14.0 | 1920×1080 |
| B140HAN01.2 | AUO | 14.0 | 1920×1080 |
| B140HAN01.3 | AUO | 14.0 | 1920×1080 |
| B140HAN01.8 | AUO | 14.0 | 1920×1080 |
| B140HAT02.0 | AUO | 14.0 | 1920×1080 |
| B140HTN01.1 | AUO | 14.0 | 1920×1080 |
| B140HTN01.3 | AUO | 14.0 | 1920×1080 |
| NV140FHM-N41 | BOE | 14.0 | 1920×1080 |
