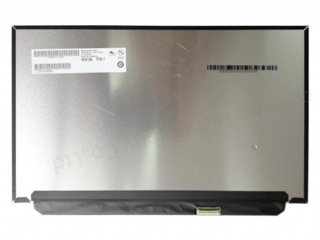

| Nomor Bagian | B125HAN03.1 |
| Merek | AUO |
| Ukuran | 12.5 |
| Aplikasi | Laptop |
| Resolusi | 1920×1080 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 800:1 |
| Warna | 16.2M |
| Lampu latar | WLED |
| Antarmuka | eDP |
| merek | AUO |
| ukuran diagonal | 12.5 inch |
| format piksel | 1920(RGB)×1080 [FHD] 176PPI |
| daerah aktif | 276.48(H)×155.52(V) mm |
| daerah bezel | - |
| pencahayaan | 400 cd/m² (Typ.) |
| arah pandangan | Symmetry |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10) |
| warna pendukung | 16.2M 99% sRGB |
| gaya bentuk | Slim (PCBA Flat, T≤3.2mm) |
| kecepatan bingkai | 60Hz |

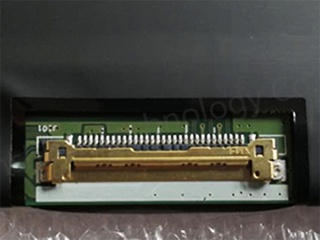

| tipe antarmuka | eDP (2 Lanes) , eDP1.3 , 30 pins Connector |
| Sumber Daya listrik | 3.3V (Typ.) |
| lingkungan | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| model | B125HAN03.1 (AUO316D) |
| jenis | a-Si TFT-LCD , LCM |
| konfigurasi | RGB Vertical Stripe |
| garis besar redup. | 282.4(H)×179.32(V) ×2.5(D) mm |
| perlakuan | Glare (Haze 0%) |
| rasio kontras | 800:1 (Typ.) (TM) |
| waktu merespon | 27 (Typ.)(Tr+Td) |
| Modus operasi | AHVA, Normally Black, Transmissive |
| sumber cahaya | WLED , 15K hours , With LED Driver |
| dirancang untuk | Laptop |
| panel sentuh | Without |
