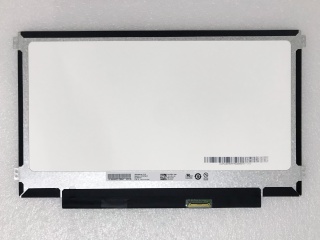

| Nomor Bagian | B116XTN02.3 HW2G |
| Merek | AUO |
| Ukuran | 11.6 |
| Aplikasi | Laptop Netbook PC |
| Resolusi | 1366×768 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 400:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antarmuka | eDP |
| merek | AUO |
| ukuran diagonal | 11.6 inch |
| format piksel | 1366(RGB)×768 [WXGA] 135PPI |
| daerah aktif | 256.125(H)×144(V) mm |
| daerah bezel | - |
| pencahayaan | 220 cd/m² (Typ.) |
| arah pandangan | 6 o'clock |
| sudut pandang | 45/45/15/35 (Typ.)(CR≥10) |
| warna pendukung | 262K 45% NTSC |
| gaya bentuk | Slim (PCBA Flat, T≤3.2mm) |
| kecepatan bingkai | 60Hz |
| tipe antarmuka | eDP (2 Lanes) , 30 pins Connector |
| Sumber Daya listrik | 3.3V (Typ.) |
| lingkungan | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| model | B116XTN02.3 HW2G |
| jenis | a-Si TFT-LCD , LCM |
| konfigurasi | RGB Vertical Stripe |
| garis besar redup. | 278(H)×168(V) ×3(D) mm |
| perlakuan | Hard coating (3H) |
| rasio kontras | 400:1 (Typ.) (TM) |
| waktu merespon | 8 (Typ.)(Tr+Td) |
| Modus operasi | TN, Normally White, Transmissive |
| sumber cahaya | WLED , 15K hours , With LED Driver |
| dirancang untuk | Laptop Netbook PC |
| panel sentuh | Without |
