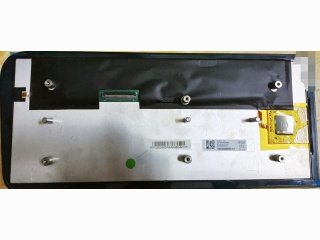

| Nomor Bagian | AV123Z7T-A19-D8P0 |
| Merek | BOE |
| Ukuran | 12.3 |
| Aplikasi | Outdoor High Brightn |
| Resolusi | 1920×720 |
| Komposisi | LCM, a-Si TFT-LCD |
| Kecerahan | |
| CR | 1100:1 |
| Warna | 16.7M |
| Lampu latar | 9S4P |
| Antarmuka | LVDS |
| pabrikan | BOE |
| nama model | AV123Z7T-A19-D8P0 |
| ukuran layar | 12.3 inch |
| tipe layar | LCM, a-Si TFT-LCD |
| nomor piksel | 1920(RGB)×720 167PPI |
| pengaturan | RGB Vertical Stripe |
| area aktif (mm) | 292.032 × 109.512 (H×V) |
| garis besar (mm) | 345.19 × 149.1 × 27.93 (H×V×D) |
| area bezel (mm) | - |
| perlakuan | Anti Fingerprint + Antiglare, Hard coating (3H) |
| pencahayaan | 850 cd/m² (Typ.) |
| rasio kontras | 1100 : 1 (Typ.) (TM) |
| sudut pandang | 80/80/80/80 (Typ.)(CR≥10) |
| tanggapan | 25 (Max.)(Tr+Td) ms |
| pemandangan bagus di | Symmetry |
| mode kerja | IPS, Normally Black, Transmissive |
| kedalaman warna | 16.7M 80% NTSC |
| lampu latar | 9S4P WLED , 50K hours , No Driver |
| massa | - |
| digunakan untuk | Outdoor High Brightness Automotive Display |
| tingkat penyegaran | 60Hz |
| layar sentuh | PCAP |
| jenis sinyal | LVDS (2 ch, 8-bit) , Connector 60 pins |
| sumber tegangan | 3.3V (Typ.) |
| maks. peringkat | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C |
| AV123Z7M-N11 | BOE | 12.3 | 1920×720 |
| C123HAN01.0 | AUO | 12.3 | 1920×720 |
| C123HAN01.1 | AUO | 12.3 | 1920×720 |
| LA123WF1-SL01 | LG Display | 12.3 | 1920×720 |
| LAM1233548D | JDI | 12.3 | 1920×720 |
| LD123UX1-SMA1 | LG Display | 12.3 | 1600×1200 |
| LQ123K3LG01 | SHARP | 12.3 | 1280×480 |
| TJ123NP01BA | Innolux | 12.3 | 1280×480 |
| TJ123NP01CA | Innolux | 12.3 | 1280×480 |
| TX31D200VM0BAA | KOE | 12.3 | 1280×480 |
