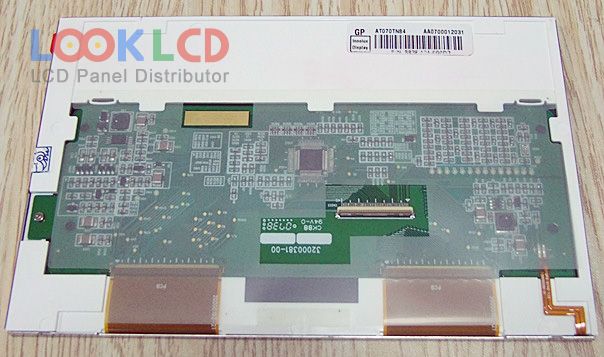

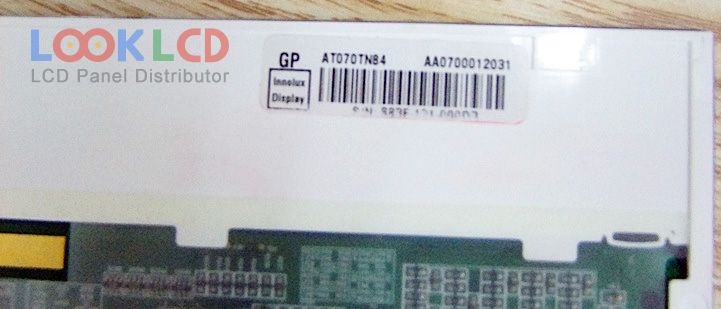

| Nomor Bagian | AT070TN84 |
| Merek | Innolux |
| Ukuran | 7.0 |
| Aplikasi | DPF |
| Resolusi | 800×480 |
| Komposisi | LCM |
| Kecerahan | 450 |
| CR | 500:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antarmuka | TTL |
| merek panel | INNOLUX |
| model panel | AT070TN84 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 7.0 inch |
| resolusi | 800(RGB)×480 , WVGA |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 152.4×91.44 mm |
| garis besar | 165×104×5.8 mm |
| permukaan | Antiglare |
| kecerahan | 450 cd/m² (Typ.) |
| rasio kontras | 500:1 (Typ.) |
| menampilkan warna | 262K (6-bit) |
| waktu merespon | 10/15 (Typ.)(Tr/Td) |
| sudut pandang | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | WLEDEmbedded (LED Driver) |
| antarmuka sinyal | TTL (1 ch, 6-bit), 40 pins |
| tegangan masukan | 3.3V (Typ.)(VCC) |
| aplikasi | DPF |
| AT070TN01 | Innolux | 7.0 | 480×234 |
| AT070TN07 V.A | Innolux | 7.0 | 480×234 |
| AT070TN07 V.D | Innolux | 7.0 | 480×234 |
| AT070TN82 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN83 TP | Innolux | 7.0 | 800×480 |
| AT070TN83 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN83 V.3 | Innolux | 7.0 | 800×480 |
| AT070TN90 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN92 V.4 | Innolux | 7.0 | 800×480 |
| AT070TN93 | Innolux | 7.0 | 800×480 |
| A070FW05 V1 | AUO | 7.0 | 480×234 |
| A080SN03 V3 | AUO | 8.0 | 800×600 |
| A090VW01 V3 | AUO | 9.0 | 800×480 |
| AT070TN90 V.1 | Innolux | 7.0 | 800×480 |
| DLC0700EZG-1 | Other | 7.0 | 800×480 |
| HJ080IA-01F | Innolux | 8.0 | 1024×768 |
| LTP700WV-F02 | Samsung | 7.0 | 800×480 |
| LW700AT9309 | Innolux | 7.0 | 800×480 |
| PM102ZY2 | E Ink | 10.2 | 1024×600 |
| TM102WV-A02-03 | SANYO | 10.2 | 800×480 |
