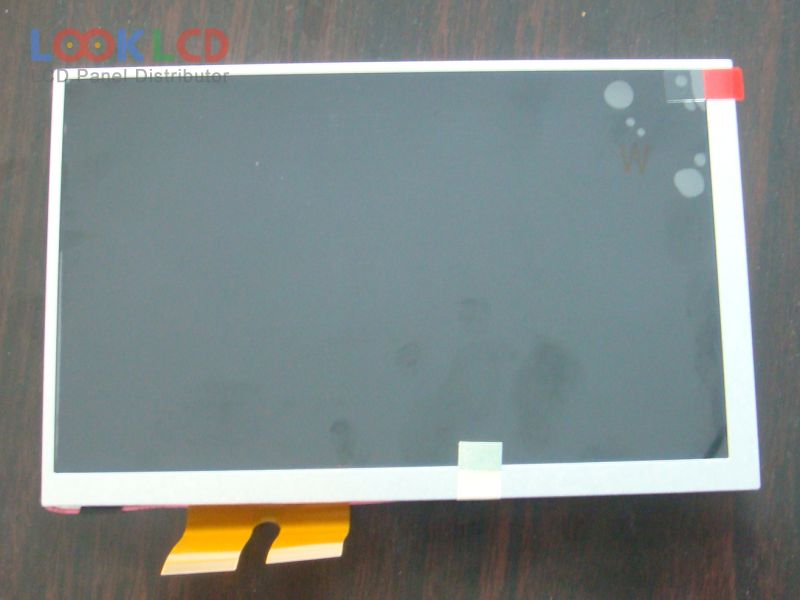

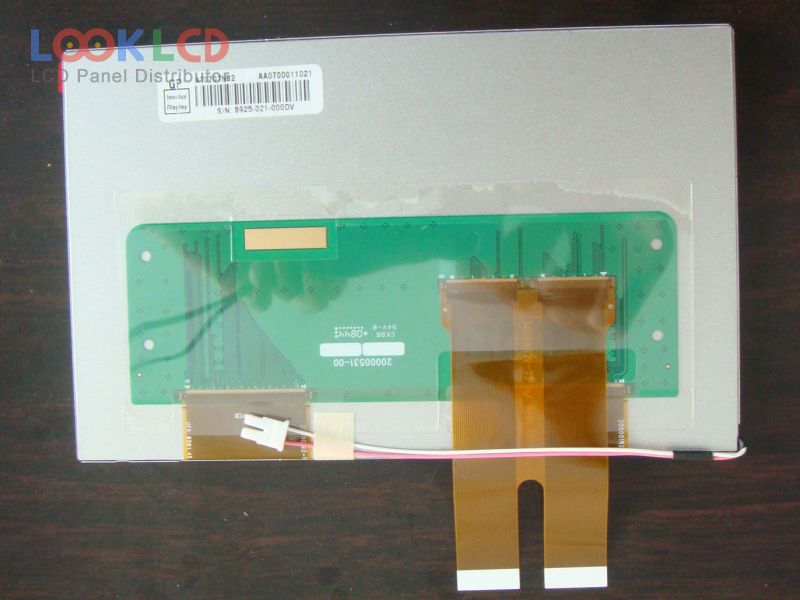

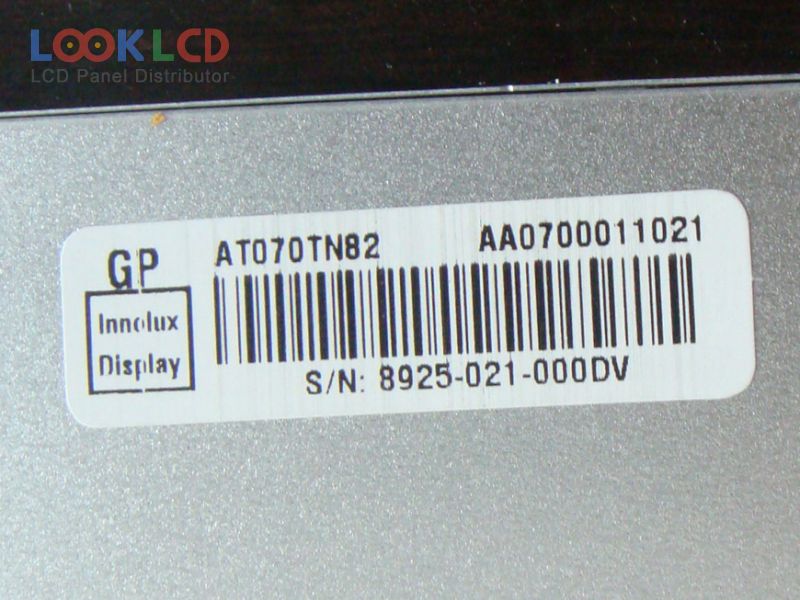

| Nomor Bagian | AT070TN82 |
| Merek | Innolux |
| Ukuran | 7.0 |
| Aplikasi | MP4 |
| Resolusi | 800×480 |
| Komposisi | LCM |
| Kecerahan | 200 |
| CR | 500:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antarmuka | TTL |
| merek panel | INNOLUX |
| model panel | AT070TN82 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 7.0 inch |
| resolusi | 800(RGB)×480 , WVGA |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 152.4×91.44 mm |
| garis besar | 165×104×6.3 mm |
| permukaan | Antiglare |
| kecerahan | 200 cd/m² (Typ.) |
| rasio kontras | 500:1 (Typ.) |
| menampilkan warna | 262K (6-bit) |
| waktu merespon | 10/15 (Typ.)(Tr/Td) |
| sudut pandang | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | 3S9PWLEDWithout Driver |
| antarmuka sinyal | Parallel RGB (1 ch, 6-bit), 60 pins |
| tegangan masukan | 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| roh: | |
| aplikasi | MP4 |
| AT070TN07 V.A | Innolux | 7.0 | 480×234 |
| AT070TN82 | Innolux | 7.0 | 800×480 |
| AT070TN83 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN90 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN92 | Innolux | 7.0 | 800×480 |
| AT070TN92 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN92 V.3 | Innolux | 7.0 | 800×480 |
| AT070TN92 V.X | Innolux | 7.0 | 800×480 |
| AT070TN93 | Innolux | 7.0 | 800×480 |
| AT070TN93 V.2 | Innolux | 7.0 | 800×480 |
| A065VL01 V1 | AUO | 6.5 | 800×480 |
| AT070TN93 | Innolux | 7.0 | 800×480 |
| AT070TNA2 V.1 | Innolux | 7.0 | 1024×600 |
| BA070WS1-100 | BOE | 7.0 | 1024×600 |
| BA070WS1-300 | BOE | 7.0 | 1024×600 |
| CLAA070ND02 | CPT | 7.0 | 1024×600 |
| CLAA070ND36CW | CPT | 7.0 | 1024×600 |
| LB040Q03-TD01 | LG Display | 4.0 | 320×240 |
| LMS700KF21 | Samsung | 7.0 | 800×480 |
| LMS700KF23 | Samsung | 7.0 | 800×480 |
