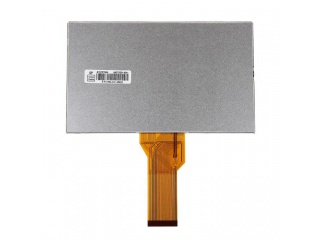

| Nomor Bagian | AT070TN04 |
| Merek | Innolux |
| Ukuran | 7.0 |
| Aplikasi | Automotive Display |
| Resolusi | 480×234 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 300:1 |
| Warna | Full |
| Lampu latar | CCFL |
| Antarmuka | TFT |
| merek | Innolux |
| ukuran diagonal | 7.0 inch |
| format piksel | 480(RGB)×234 76PPI |
| daerah aktif | 154.08(H)×86.58(V) mm |
| daerah bezel | - |
| pencahayaan | 500 cd/m² (Typ.) |
| arah pandangan | 6 o'clock |
| sudut pandang | 60/60/40/60 (Typ.)(CR≥10) |
| warna pendukung | Full color |
| berat | 160g (Typ.) |
| kecepatan bingkai | 60Hz |
| tipe antarmuka | TFT Specific Analog RGB , 26 pins FPC |
| Sumber Daya listrik | 5.0/5.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| lingkungan | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| model | AT070TN04 |
| jenis | a-Si TFT-LCD , LCM |
| konfigurasi | RGB Vertical Stripe |
| garis besar redup. | 164.9(H)×100(V) ×6(D) mm |
| perlakuan | Antiglare |
| rasio kontras | 300:1 (Typ.) (TM) |
| waktu merespon | 10/20 (Typ.)(Tr/Td) |
| Modus operasi | TN, Normally White, Transmissive |
| sumber cahaya | CCFL [1 pcs] , 10K hours , W/O Driver |
| dirancang untuk | Automotive Display |
| panel sentuh | Without |
