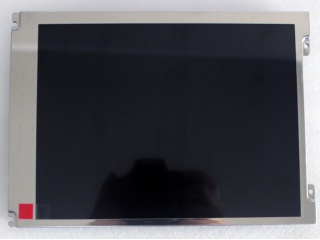

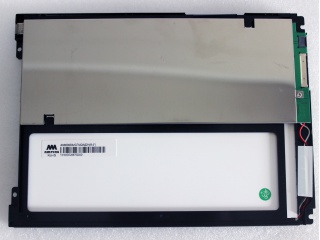

| Nomor Bagian | AM-800600MGTMQW-02H |
| Merek | AMPIRE |
| Ukuran | 8.4 |
| Aplikasi | Industrial |
| Resolusi | 800×600 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 600:1 |
| Warna | 16.7M |
| Lampu latar | 12S4P |
| Antarmuka | LVDS |
| merek panel | AMPIRE |
| model panel | AM-800600MGTMQW-02H |
| ukuran panel | 8.4" |
| tipe panel | a-Si TFT-LCD, LCM |
| resolusi | 800(RGB)×600, SVGA, 119PPI |
| format piksel | RGB Vertical Stripe |
| area tampilan | 170.4(W)×127.8(H) mm |
| bukaan bezel | 174.15(W)×131.2(H) mm |
| ukuran garis besar | 203(W)×145.5(H) ×11.7(D) mm |
| permukaan | - |
| kecerahan | 350 cd/m² (Typ.) |
| rasio kontras | 600:1 (Typ.) (TM) |
| sudut pandang | 75/75/60/70 (Typ.)(CR≥10) |
| mode tampilan | TN, Normally White, Transmissive |
| tampilan terbaik di | - |
| waktu merespon | 8 (Typ.)(Tr+Td) |
| menampilkan warna | 16.7M |
| jenis lampu | 12S4P WLED , 50K hours , With LED Driver |
| frekuensi | 60Hz |
| layar sentuh | Without |
| berat panel | TBD |
| aplikasi | Industrial |
| antarmuka sinyal | LVDS (1 ch, 8-bit) , 20 pins Connector |
| tegangan masukan | 3.3V (Typ.) |
| lingkungan | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
