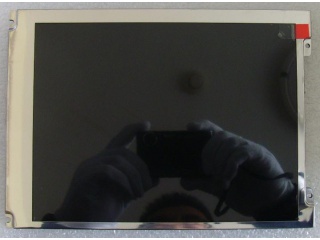

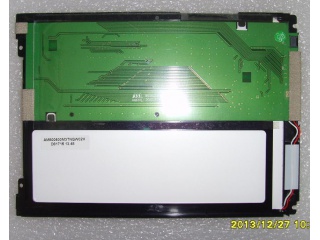

| Nomor Bagian | AM-800600M3TNQW-02H |
| Merek | AMPIRE |
| Ukuran | 8.4 |
| Aplikasi | Industrial |
| Resolusi | 800×600 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 600:1 |
| Warna | 262K |
| Lampu latar | 12S4P |
| Antarmuka | LVDS |
| pabrikan | AMPIRE |
| nama model | AM-800600M3TNQW-02H |
| ukuran layar | 8.4 inch |
| tipe layar | LCM , a-Si TFT-LCD |
| nomor piksel | 800(RGB)×600 (SVGA) 119PPI |
| pengaturan | RGB Vertical Stripe |
| area aktif (mm) | 170.4 × 127.8 (H×V) |
| garis besar (mm) | 203 × 145.5 × 10.4 (H×V×D) |
| area bezel (mm) | 174.15 × 131.2 (H×V) |
| perlakuan | - |
| pencahayaan | 350 cd/m² (Typ.) |
| rasio kontras | 600 : 1 (Typ.) (TM) |
| sudut pandang | 75/75/60/70 (Typ.)(CR≥10) |
| tanggapan | 8 (Typ.)(Tr+Td) ms |
| pemandangan bagus di | - |
| mode kerja | TN, Normally White, Transmissive |
| kedalaman warna | 262K 70% NTSC |
| lampu latar | 12S4P WLED , 50K hours , With LED Driver |
| massa | 280g |
| digunakan untuk | Industrial |
| tingkat penyegaran | 60Hz |
| layar sentuh | Without |
| jenis sinyal | LVDS (1 ch, 6-bit) , 20 pins Connector |
| sumber tegangan | 3.3V (Typ.) |
| maks. peringkat | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
