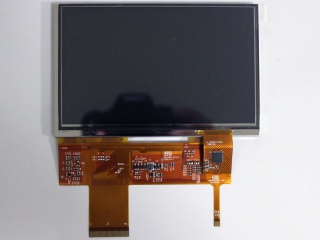

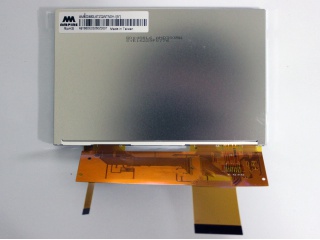

| Nomor Bagian | AM-800480L6TZQW-TN0H-I |
| Merek | AMPIRE |
| Ukuran | 5.0 |
| Aplikasi | Industrial |
| Resolusi | 800×480 |
| Komposisi | LCM, a-Si TFT-LCD |
| Kecerahan | |
| CR | 250:1 |
| Warna | 16.7M |
| Lampu latar | 3S4P |
| Antarmuka | Parallel |
| pabrikan | AMPIRE |
| nama model | AM-800480L6TZQW-TN0H-I |
| ukuran layar | 5.0 inch |
| tipe layar | LCM, a-Si TFT-LCD |
| nomor piksel | 800(RGB)×480 (WVGA) 188PPI |
| pengaturan | RGB Vertical Stripe |
| area aktif (mm) | 108 × 64.8 (H×V) |
| garis besar (mm) | 118.5 × 77.1 × 6.44 (H×V×D) |
| area bezel (mm) | 110.6 × 67.4 (H×V) |
| perlakuan | - |
| pencahayaan | 500 cd/m² (Typ.) |
| rasio kontras | 250 : 1 (Typ.) (TM) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10) |
| tanggapan | 15/35 (Typ.)(Tr/Td) ms |
| pemandangan bagus di | Symmetry |
| mode kerja | Normally Black, Transmissive |
| kedalaman warna | 16.7M 52% NTSC |
| lampu latar | 3S4P WLED , 30K hours , No Driver |
| massa | - |
| digunakan untuk | Industrial |
| tingkat penyegaran | 60Hz |
| layar sentuh | PCAP |
| jenis sinyal | Parallel RGB (1 ch, 8-bit) , FPC 45 pins |
| sumber tegangan | 3.3V (Typ.) |
| maks. peringkat | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
