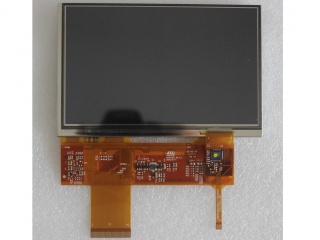

| Nomor Bagian | AM-800480L1TMQW-TN0H-A |
| Merek | AMPIRE |
| Ukuran | 5.0 |
| Aplikasi | Industrial |
| Resolusi | 800×480 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 250:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | Parallel |
| merek | AMPIRE |
| model | AM-800480L1TMQW-TN0H-A |
| ukuran diagonal | 5.0 inch |
| jenis | a-Si TFT-LCD, LCM |
| format piksel | 800(RGB)×480 [WVGA] 188PPI |
| konfigurasi | RGB Vertical Stripe |
| daerah aktif | 108(H)×64.8(V) mm |
| garis besar redup. | 118.5(H)×74(V) ×5.01(D) mm |
| daerah bezel | 110.6(H)×67.4(V) mm |
| perlakuan | Antiglare |
| pencahayaan | 360 cd/m² (Typ.) |
| rasio kontras | 250:1 (Typ.) (TM) |
| arah pandangan | 6 o'clock |
| waktu merespon | 15/35 (Typ.)(Tr/Td) |
| sudut pandang | 70/70/70/50 (Typ.)(CR≥10) |
| Modus operasi | TN, Normally White, Transmissive |
| warna pendukung | 16.7M 52% NTSC |
| sumber cahaya | WLED [3S6P] , W/O Driver |
| berat | - |
| dirancang untuk | Industrial |
| kecepatan bingkai | 60Hz |
| panel sentuh | PCAP |
| tipe antarmuka | Parallel RGB (1 ch, 8-bit) , 45 pins FPC |
| Sumber Daya listrik | 3.3V (Typ.) |
| lingkungan | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
