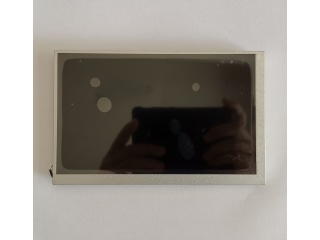

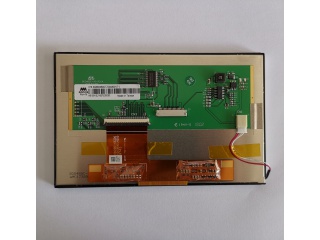

| Nomor Bagian | AM-800480CTZQW-A5H |
| Merek | AMPIRE |
| Ukuran | 7.0 |
| Aplikasi | Industrial Outdoor H |
| Resolusi | 800×480 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 262K |
| Lampu latar | 6S5P |
| Antarmuka | LVDS |
| pabrikan | AMPIRE |
| nama model | AM-800480CTZQW-A5H |
| ukuran layar | 7.0 inch |
| tipe layar | LCM , a-Si TFT-LCD |
| nomor piksel | 800(RGB)×480 (WVGA) 133PPI |
| pengaturan | RGB Vertical Stripe |
| area aktif (mm) | 152.4 × 91.44 (H×V) |
| garis besar (mm) | 165 × 104.4 × 11.61 (H×V×D) |
| area bezel (mm) | 15.48 × 93.85 (H×V) |
| perlakuan | - |
| pencahayaan | 1500 cd/m² (Typ.) |
| rasio kontras | 1000 : 1 (Typ.) (TM) |
| sudut pandang | 80/80/80/80 (Typ.)(CR≥10) |
| tanggapan | 25 (Typ.)(Tr+Td) ms |
| pemandangan bagus di | Symmetry |
| mode kerja | IPS, Normally Black, Transmissive |
| kedalaman warna | 262K 58% NTSC |
| lampu latar | 6S5P WLED , 50K hours , With LED Driver |
| massa | - |
| digunakan untuk | Industrial Outdoor High Brightness |
| tingkat penyegaran | 60Hz |
| layar sentuh | Without |
| jenis sinyal | LVDS (1 ch, 6-bit) , 20 pins Connector |
| sumber tegangan | 12.0V (Typ.) |
| maks. peringkat | Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C |
