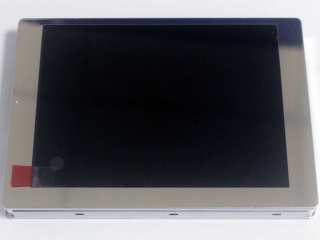

| Nomor Bagian | AM-640480VSTZQW-20H |
| Merek | AMPIRE |
| Ukuran | 5.7 |
| Aplikasi | Industrial |
| Resolusi | 640×480 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 1200:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antarmuka | |
| merek | AMPIRE |
| ukuran diagonal | 5.7 inch |
| format piksel | 640(RGB)×480 [VGA] 141PPI |
| daerah aktif | 115.2(H)×86.4(V) mm |
| daerah bezel | 118.2(H)×89.4(V) mm |
| pencahayaan | 400 cd/m² (Typ.) |
| arah pandangan | Symmetry |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10) |
| warna pendukung | 262K 60% NTSC |
| berat | - |
| kecepatan bingkai | 60Hz |
| model | AM-640480VSTZQW-20H |
| jenis | a-Si TFT-LCD , LCM |
| konfigurasi | RGB Vertical Stripe |
| garis besar redup. | 144(H)×104.6(V) ×12.6(D) mm |
| perlakuan | - |
| rasio kontras | 1200:1 (Typ.) (TM) |
| waktu merespon | 30 (Typ.)(Tr+Td) |
| Modus operasi | IPS, Normally Black, Transmissive |
| sumber cahaya | WLED [3S7P] , 50K hours , With LED Driver |
| dirancang untuk | Industrial |
| panel sentuh | Without |
