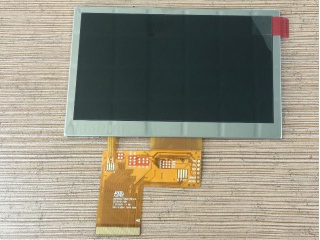

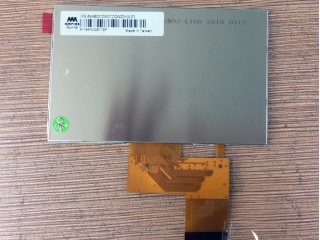

| Nomor Bagian | AM-480272MGTZQW-02H |
| Merek | AMPIRE |
| Ukuran | 4.3 |
| Aplikasi | Industrial Outdoor H |
| Resolusi | 480×272 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | 5S3P |
| Antarmuka | Parallel |
| merek panel | AMPIRE |
| model panel | AM-480272MGTZQW-02H |
| ukuran panel | 4.3" |
| tipe panel | a-Si TFT-LCD, LCM |
| resolusi | 480(RGB)×272, WQVGA, 128PPI |
| format piksel | RGB Vertical Stripe |
| area tampilan | 95.04(W)×53.856(H) mm |
| bukaan bezel | 97.6(W)×56.0(H) mm |
| ukuran garis besar | 105.6(W)×67.2(H) ×3.1(D) mm |
| permukaan | - |
| kecerahan | 1000 cd/m² (Typ.) |
| rasio kontras | 800:1 (Typ.) (TM) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10) |
| mode tampilan | IPS, Normally Black, Transmissive |
| tampilan terbaik di | Symmetry |
| waktu merespon | 30 (Typ.)(Tr+Td) |
| menampilkan warna | 16.7M 51% NTSC |
| jenis lampu | 5S3P WLED , Without Driver |
| frekuensi | 60Hz |
| layar sentuh | Without |
| berat panel | - |
| aplikasi | Industrial Outdoor High Brightness Automotive Display |
| antarmuka sinyal | Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
| tegangan masukan | 3.3V (Typ.) |
| lingkungan | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
