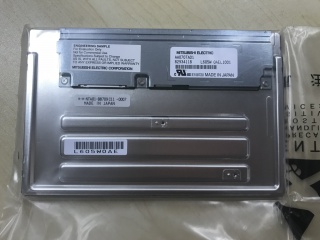

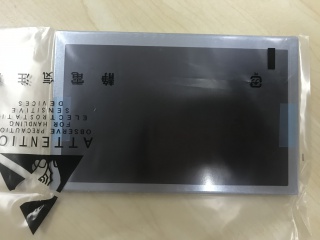

| Nomor Bagian | AA070TA01 |
| Merek | Mitsubishi |
| Ukuran | 7.0 |
| Aplikasi | Industrial Outdoor H |
| Resolusi | 1280×768 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 262K/16.7M |
| Lampu latar | WLED |
| Antarmuka | |
| merek panel | Mitsubishi |
| ukuran panel | 7.0" |
| resolusi | 1280(RGB)×768, WXGA, 214PPI |
| area tampilan | 151.68(W)×91.01(H) mm |
| ukuran garis besar | 169.8(W)×109.7(H) mm |
| kecerahan | 1000 cd/m² (Typ.) |
| sudut pandang | 88/88/88/88 (Typ.)(CR≥10) |
| tampilan terbaik di | Symmetry |
| menampilkan warna | 262K/16.7M 49% NTSC |
| frekuensi | 60Hz |
| berat | 200g (Typ.) |
| model panel | AA070TA01 |
| tipe panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| bukaan bezel | 155.1(W)×94.4(H) mm |
| permukaan | Antiglare, Hard coating (3H) |
| rasio kontras | 1000:1 (Typ.) (TM) |
| mode tampilan | SWV, Normally Black, Transmissive |
| waktu merespon | 12/12 (Typ.)(Tr/Td) |
| jenis lampu | WLED , 100K hours , With LED Driver |
| layar sentuh | Without |
| aplikasi | Industrial Outdoor High Brightness Automotive Display |
