A030DN01 VC

A030DN01 VC

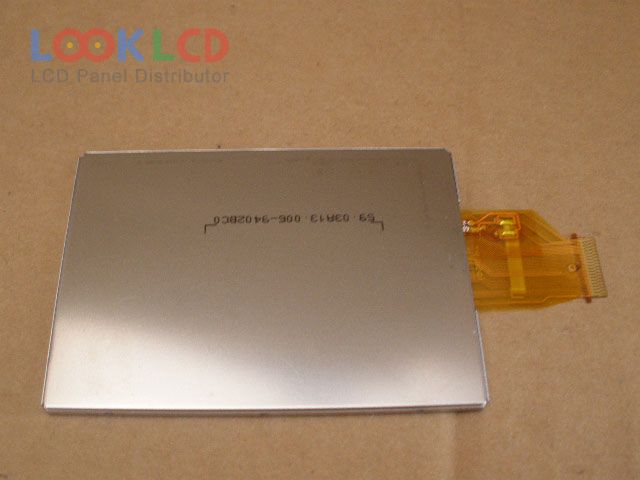

A030DN01 VC thumb
Merek
AUO
Ukuran
3.0
Aplikasi
DSC
Resolusi
320×240
Komposisi
LCM
Kecerahan
350
CR
300:1
Warna
16.7M
Lampu latar
WLED
Antarmuka
Serial RGB
In Stock
6550
Spesifikasi

Nomor Bagian A030DN01 VC
MerekAUO
Ukuran3.0
AplikasiDSC
Resolusi320×240
KomposisiLCM
Kecerahan350
CR300:1
Warna16.7M
Lampu latarWLED
AntarmukaSerial RGB
merek panelAUO
model panelA030DN01 VC
tipe panel a-Si TFT-LCD , LCM
ukuran panel3.0 inch
resolusi320(RGB)×240 , QVGA
mode tampilanTN, Normally White, Transmissive
daerah aktif60×45 mm
garis besar70.2×51.4 mm
permukaanHard coating
kecerahan350 cd/m² (Typ.)
rasio kontras300:1 (Typ.)
menampilkan warna16.7M (8-bit)
waktu merespon10/25 (Typ.)(Tr/Td)
sudut pandang60/60/50/60 (Typ.)(CR≥10)(L/R/U/D)
frekuensi60Hz
jenis lampu3S1PWLEDWithout Driver
antarmuka sinyalSerial RGB (8-bit) + SPI, CCIR601/656, 39 pins
tegangan masukan3.3/15/-10V (Typ.)(VDD/VGH/VGL)
aplikasiDSC
